Wholesale M-560 5” 100V full range speaker with 3 terminal wall speaker

Home / Products / Wall Speaker / M-560 5” 100V full range speaker with 3 terminal wall speaker
M-560 5” 100V full range speaker with 3 terminal wall speaker

01

Product category

M-560 5” 100V full range speaker with 3 terminal wall speaker

Features:

  • 5 inch 100V full range wall speaker
  • 14mm cone
  • 1.5W/3W/6W with transformer
  • Hot selling wall speaker

03

DATA INFORMATION

ITEM

M-505

M-560

RMS POWER3W

3W

1.5W/3W/6W

MAX POWER

6W

10W

VOLTAGE INPUT

100V

100 V

SENSITIVTY

91dB

91dB

FQ RESPONSE

80hz-20Khz

80hz-20Khz

LOUDSPEAKER

6“(Φ158mm)19mm cone

5“(Φ120mm)14mm cone

OUTSIDE SIZE

180×80×220mm

228×87×173mm

INNER BOX SIZE

190×95×236mm

190×95×236mm

TRANSFORMER SIZE

13×16

13×16

MATERIAL

ABS

ABS

COLOR

WHITE

WHITE

N.W.

0.95kg

0.85kg

04

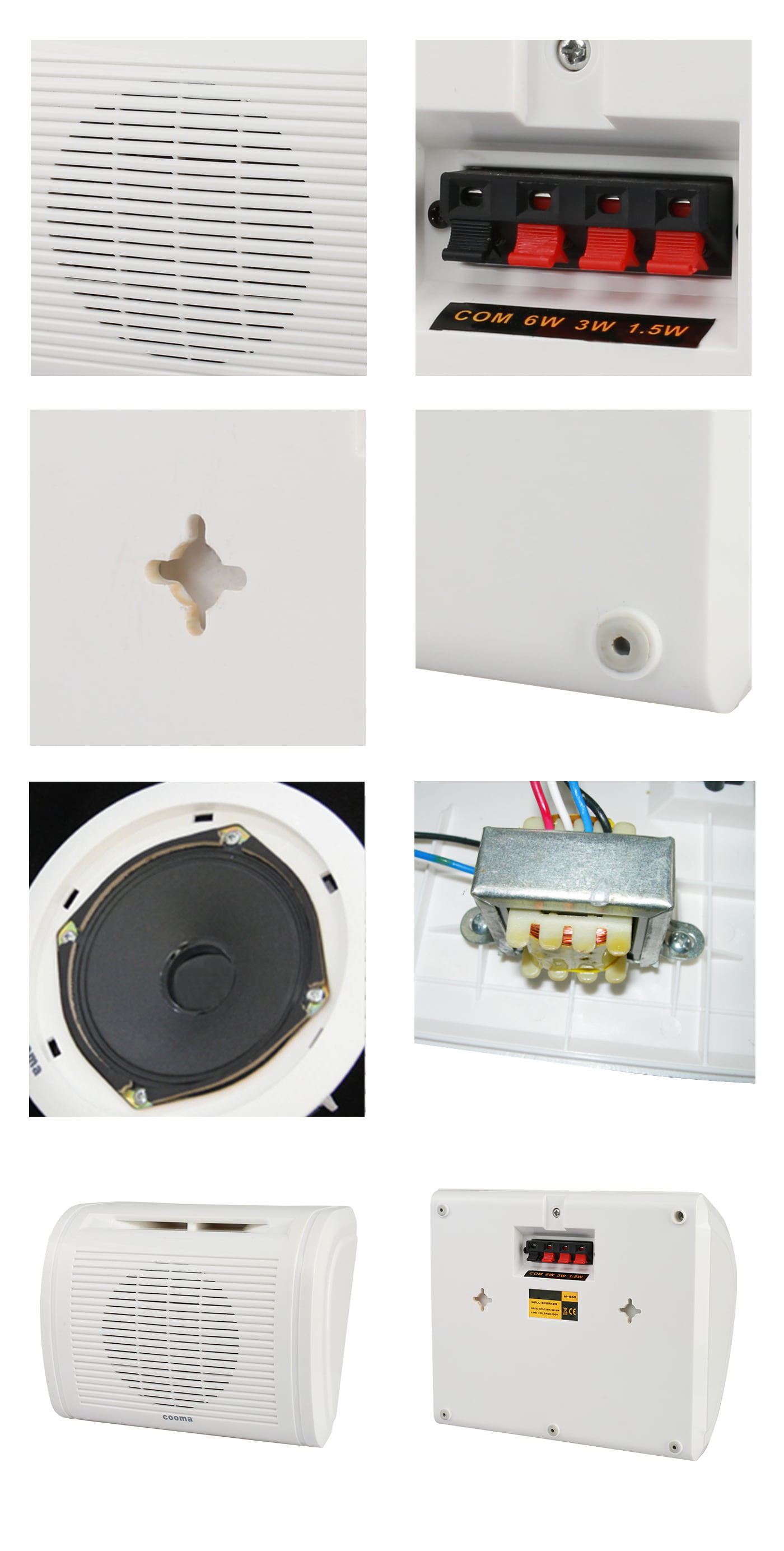

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

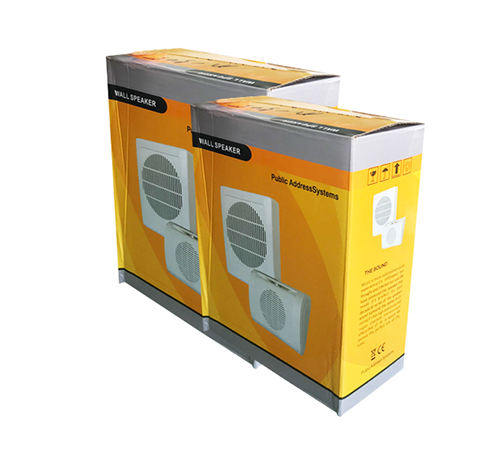

Packing


inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

M-505

50.3*40.3*49.3

20

0.100

19.00

23.20

5200

13200

M-560

50.3*40.3*49.3

20

0.100

17.00

19.50

5200 13200

Accessories:
