K-547D  8” two way speaker ABS square spraker in-wall hifi wall speaker

01

Product category

K-547D 8” two way speaker ABS square spraker in-wall hifi wall speaker

Features:

  • 8inch cone 25mm woofer, 25mm tweeter
  • With cross over best sound in one speaker for the back ground music
  • max power 60W
  • 8ohm impedance input

03

DATA INFORMATION

ITEM

K-527D

K-536D

K-547D

RMS POWER

30W

50W

60W

MAX POWER

50W

80W

100W

IMPEDANCE INPUT

SENSITIVTY

90dB±3dB

91dB±3dB

92dB±3dB

FQ RESPONSE

60hz-20Khz

50hz-20Khz

45hz-20Khz

LOUDSPEAKER

5.5“(Φ135mm)25/25mm cone

6.5“(Φ166mm)25/25mm cone

8“(Φ208mm)25/25mm cone

OUTSIDE SIZE

193×93×280mm

218×76×310mm

255×94×362mm

HOLE SIZE

Φ245×155mm

Φ275×180mm

Φ325×220mm

INNER BOX SIZE

195×76×287mm

320×233×90mm

375×270×110mm

MATERIAL

ABS

ABS

ABS

COLOR

WHITE

WHITE

WHITE

N.W.

1.5kg

1.75kg

2.42kg

04

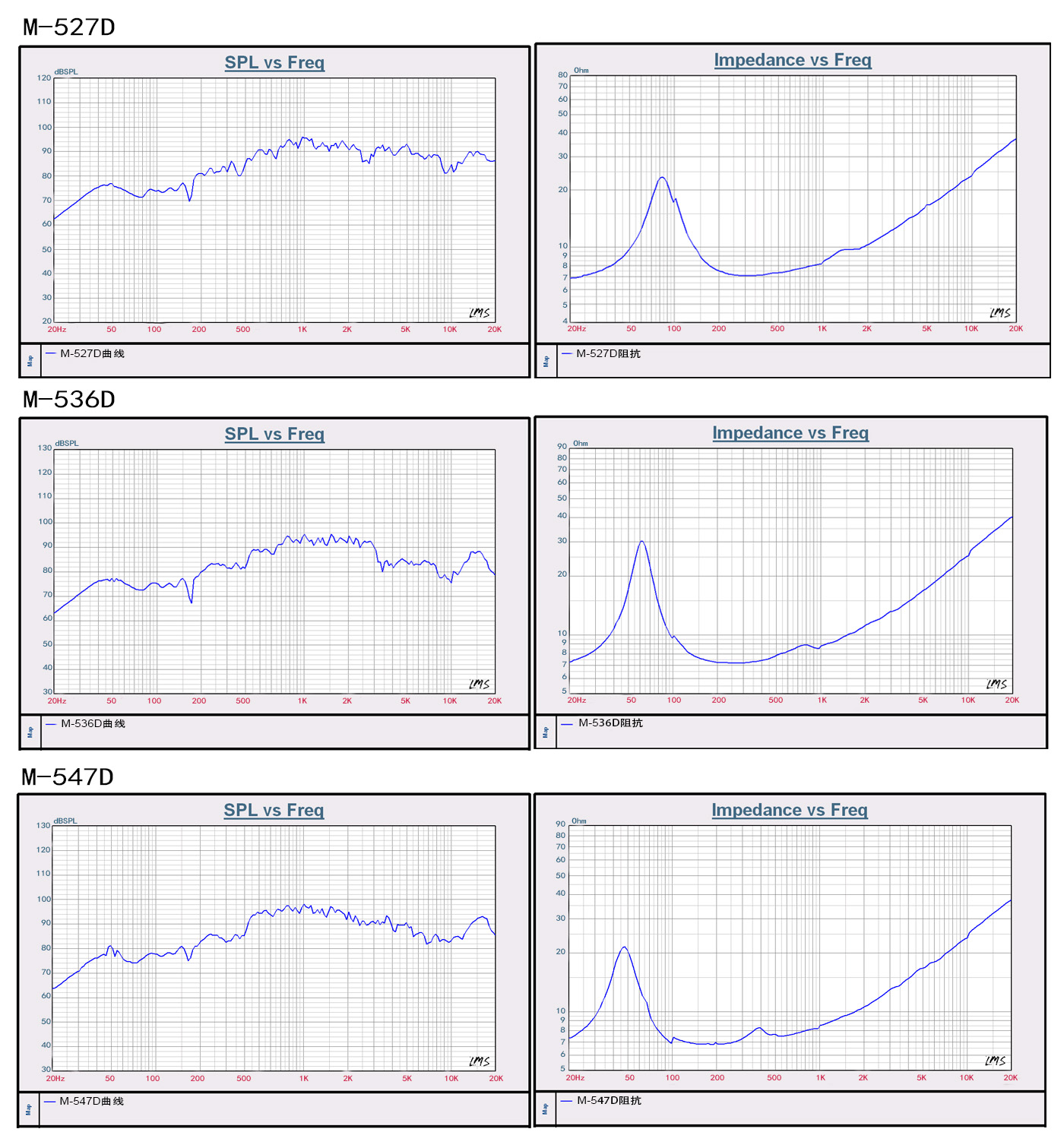

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:


    1.On the wall,drill holes according to installation size.


    2.Align the horn with the opening and open the spring clip.


    3.Push in hard to press the horn against the wall.

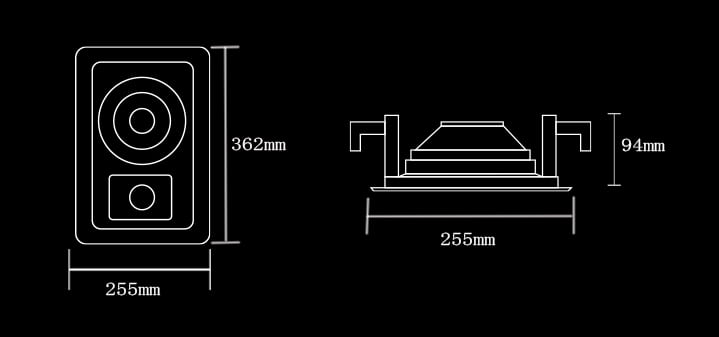

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 8Ω output is connected to the required corresponding wire.

06

Packing

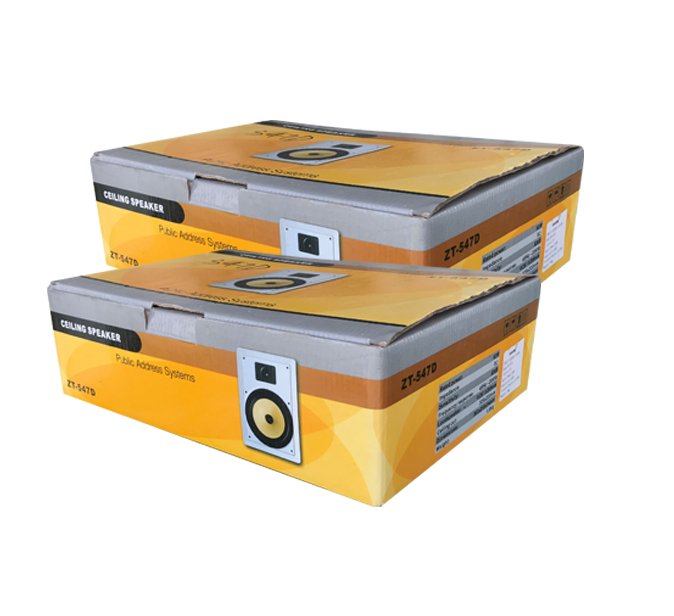

inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

K-527D

41*40*30.5

10

0.050

15.00

17.5

5200

13200

K-536D

49*48*34

10

0.080

17.50

19.50

3250

8250

K-547D

59.5×56×39.5

10

0.132

24.20

26.2

1970

5000

Accessories:

Required

——

Matching

——
