Wholesale M-255 5" waterproof full range wall speaker hifi conference speaker manufacturers

Home / Products / Hifi Conference Speaker / M-255 5" waterproof full range wall speaker hifi conference speaker manufacturers
M-255 5

01

Product category

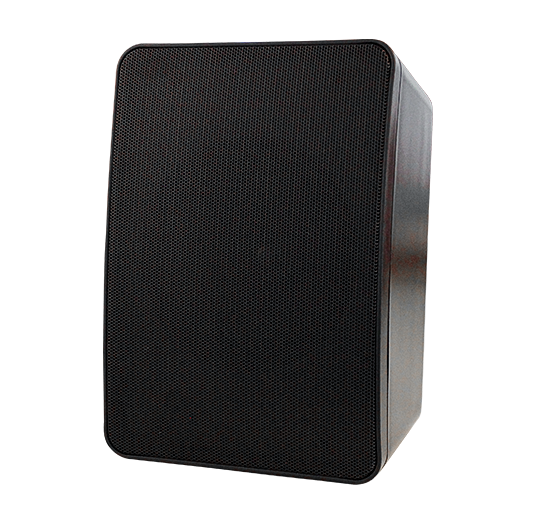

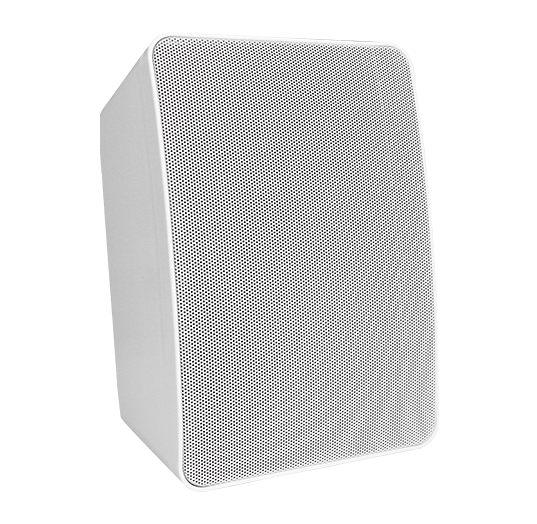

M-255 5" waterproof full range wall speaker hifi conference speaker manufacturers

Features:

  • 5 inch 100V hifi conference wall speaker
  • With transformer 15W
  • Full range speaker,20mm cone
  • Materal is ABS
  • Full white or full black

03

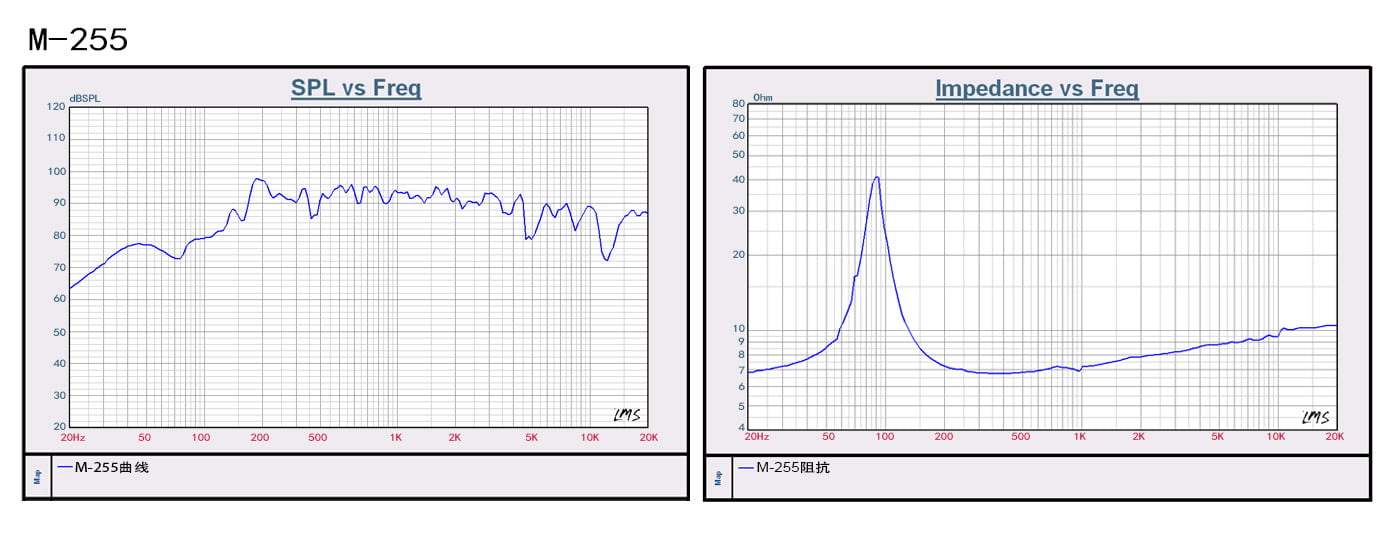

DATA INFORMATION

ITEM M-254 M-255 M-256
RMS POWER 10W 15W 30W
MAX POWER 20W 30W 50W
VOLTAGE INPUT 100V 100V 100V
SENSITIVITY 91dB 91dB 91dB
FQ RESPONSE 90hz-18Khz 90hz-18Khz 90hz-18Khz
LOUDSPEAKER 4“full range 20mm cone 5“full range 20mm cone 6.5“full range 25mm cone
OUTSIDE SIZE 180×130×100mm 230×160×135mm 280×200×180mm
INNER BOX SIZE 142×123×233mm 170×155×275mm 315×200×210mm
TRANSFORMER SIZE 13×16 13×20 16×24
MATERIAL ABS ABS ABS
COLOR BLACK/WHITE BLACK/WHITE BLACK/WHITE
N.W. 1.22kg 1.86kg 2.72kg

04

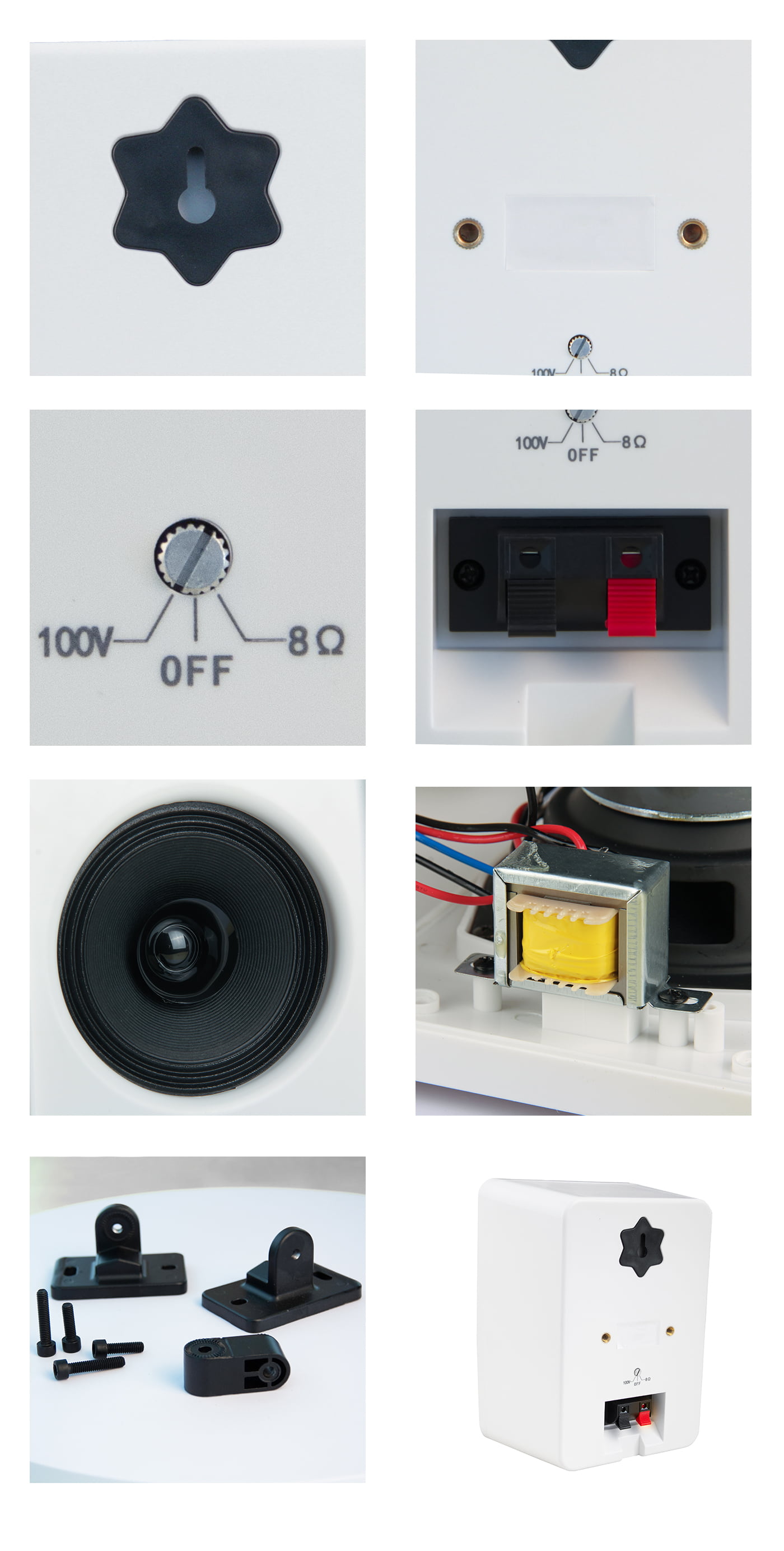

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

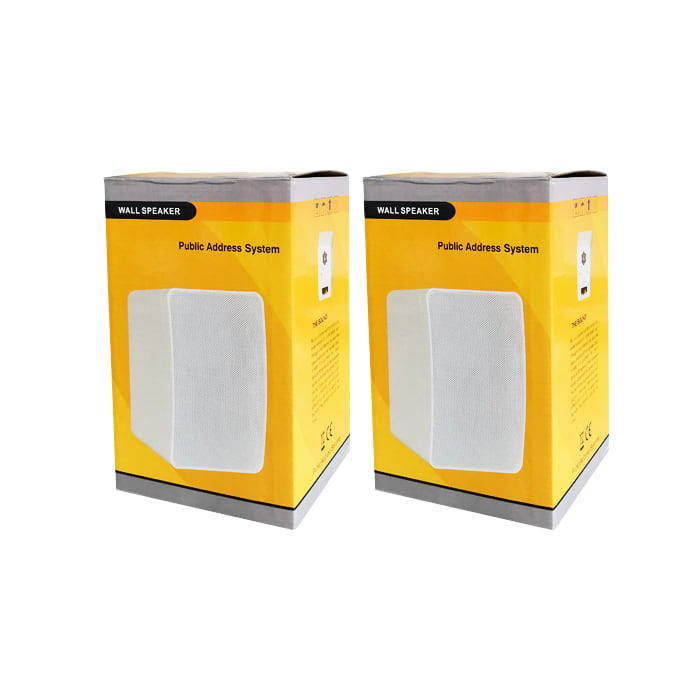

Packing


inner box


carton

Packing list

ITEM SIZE(cm) PCS/CTN CBM (m3) N.W. (kg) G.W. (kg) 20GP(pcs) 40HQ(pcs)
M-254 63.5*30.5*26.5 0.051  10 12.20  16.21  5200 12940
M-255 48.5*36*31 0.054  6 11.16  14.12  2886 7332
M-256 62*44*35 0.095  6 16.32  18.35  1644 4170

Accessories:

Required

——

Matching

——

07

THE SCENARIO


SCHOOL

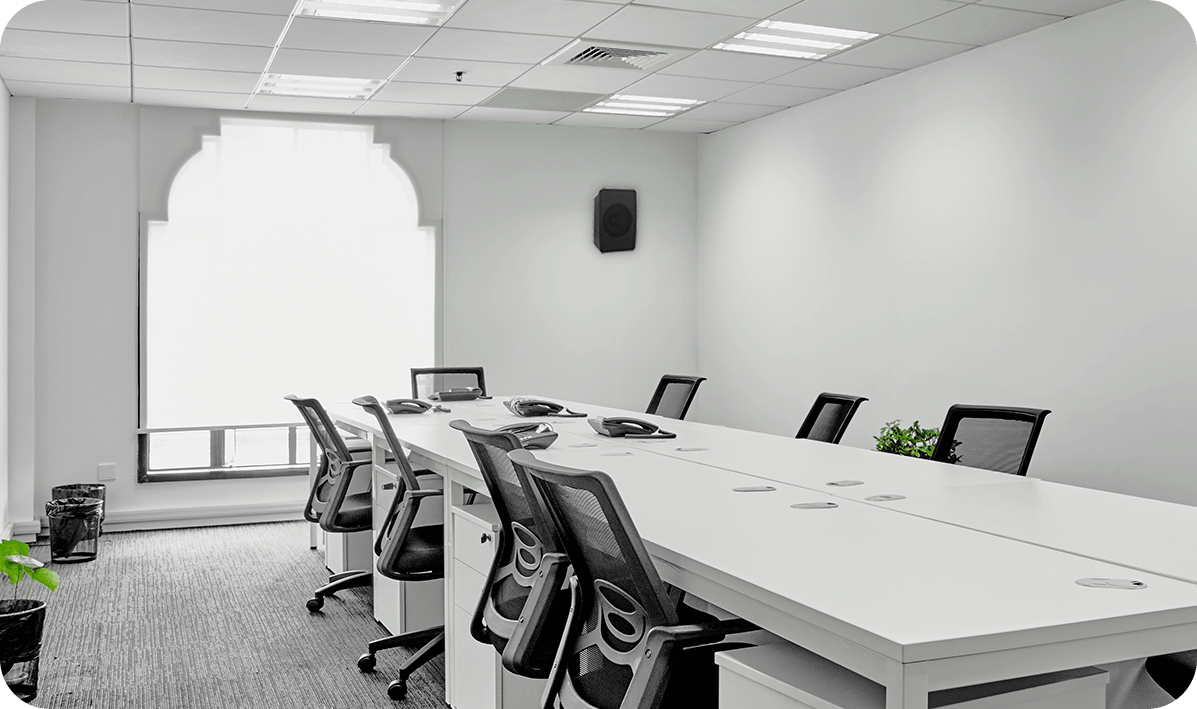

MEETING ROOM
