Features:
- 5.5inch woofer, 13mm tweeter
- With cross over best sound in one speaker for the back ground music
- max power 50W,RMS power 30W
- 8ohm impedance input
Product category
ITEM |
K-108 |
K-109 |
K-116 |
RMS POWER |
20W |
30W |
30W |
MAX POWER |
30W |
50W |
50W |
IMPEDANCE INPUT |
8Ω |
8Ω |
8Ω |
SENSITIVTY |
92dB±3dB |
92dB±3dB |
92dB±3dB |

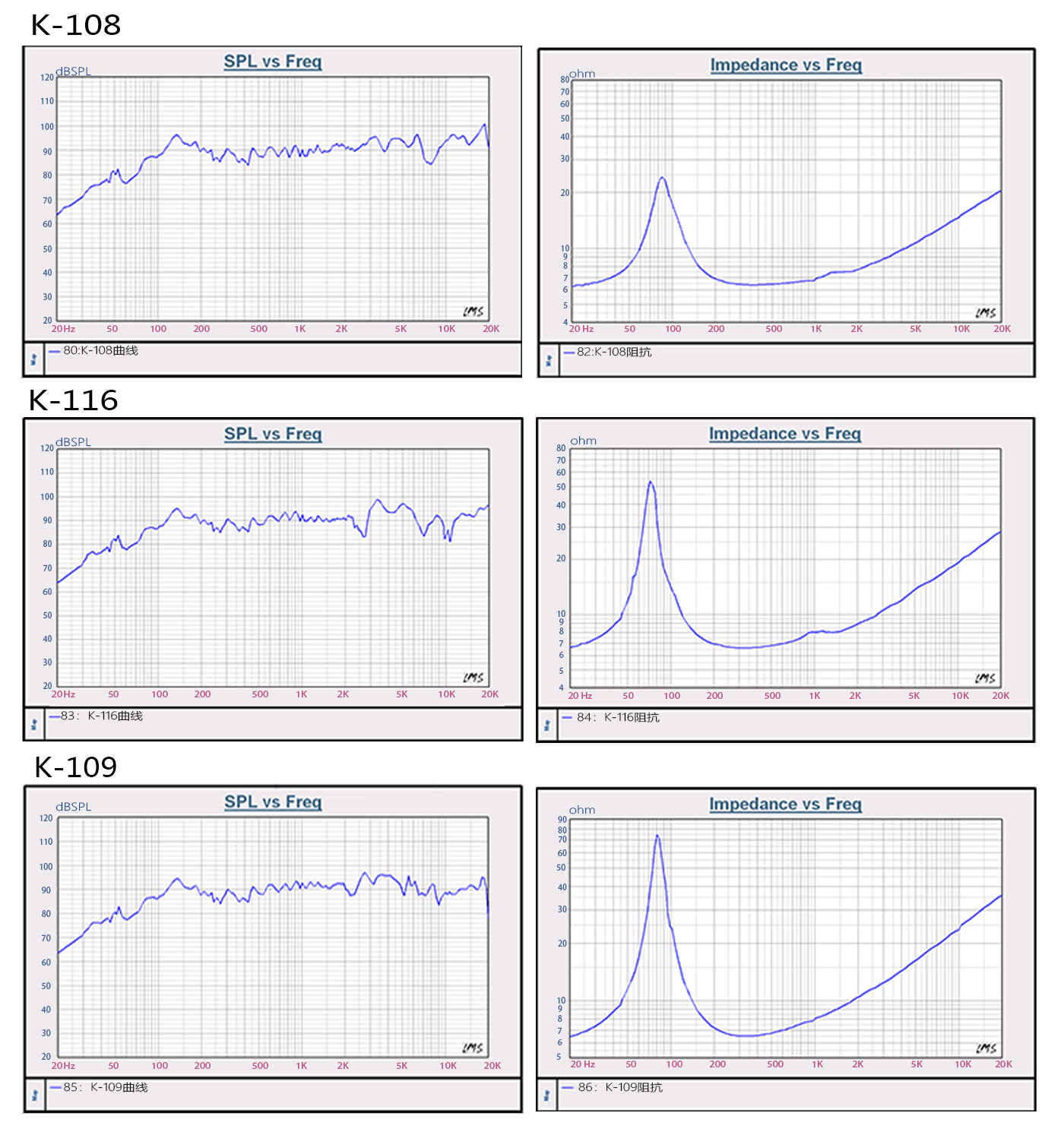

FQ RESPONSE |
90hz-18Khz |
80hz-20Khz |
80hz-20Khz |
LOUDSPEAKER |
4.5“(Φ110mm)20/13mm cone |
6.5“(Φ166mm)25/13mm cone |
5.5“(Φ135mm)25/13mm cone |
OUTSIDE SIZE |
170×75mm |
225×95mm |
188×80mm |
HOLE SIZE |
Φ150mm |
Φ190mm |
Φ165mm |
INNER BOX SIZE |
180×180×102mm |
260×260×150mm |
200×200×110mm |
MATERIAL |
ABS |
ABS |
ABS |
COLOR |
WHITE |
WHITE |
WHITE |
N.W. |
0.72kg |
1.22kg |
1.04kg |

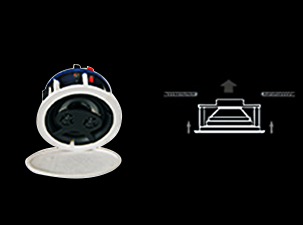

1. On the ceiling,holes are opened according to the mounting size,connect the cable to the terminal.

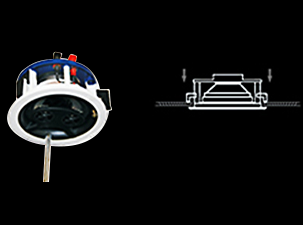

2. Remove the grille and carefully place the speakers in the mounting holes.
3. Use a screwdriver to lock the mounting bracket and install the grille.
The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 8Ω output is connected to the required corresponding wire.
inner box
carton
ITEM |
SIZE(cm) |
PCS/CTN |
CBM (m3) |
N.W. (kg) |
G.W. (kg) |
20GP(pcs) |
40HQ(pcs) |
K-108 |
38*38*22.5 |
8 |
0.032 |
5.76 |
9.26 |
6504 |
16504 |
K-109 |
53.5*27.5*32 |
4 |
0.047 |
4.88 |
8.38 |
2212 |
5616 |
K-116 |
42*42*24.5 |
8 |
0.043 |
8.32 |
11.82 |
4840 |
12280 |
Required |
—— |
Matching |
—— |
SCHOOL
MEETING ROOM
BUSINESS-CLUB
SHOPPING MALL
AIRPORT/METRO
LIVING ROOM
PANORAMA
Injection
TRANSFORMER
LOUDSPEAKER
Electronic PCB
Assembly
inspection room
Silence room
sample room
