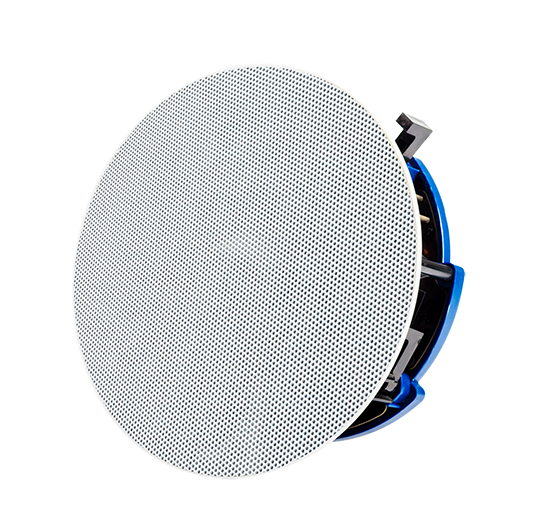

K-105 5” 8ohm in-ceiling of conference two way hifi ceiling speaker

01

Product category

K-105 5” 8ohm in-ceiling of conference two way hifi ceiling speaker

Features:

  • 5inch woofer, 25mm tweeter
  • With cross over best sound in one speaker for the back ground music
  • rms power 60W

03

DATA INFORMATION

ITEM

K-105

K-106

RMS POWER

60W

100W

MAX POWER

80W

150W

IMPEDANCE INPUT

SENSITIVTY

95±3dB

95±3dB

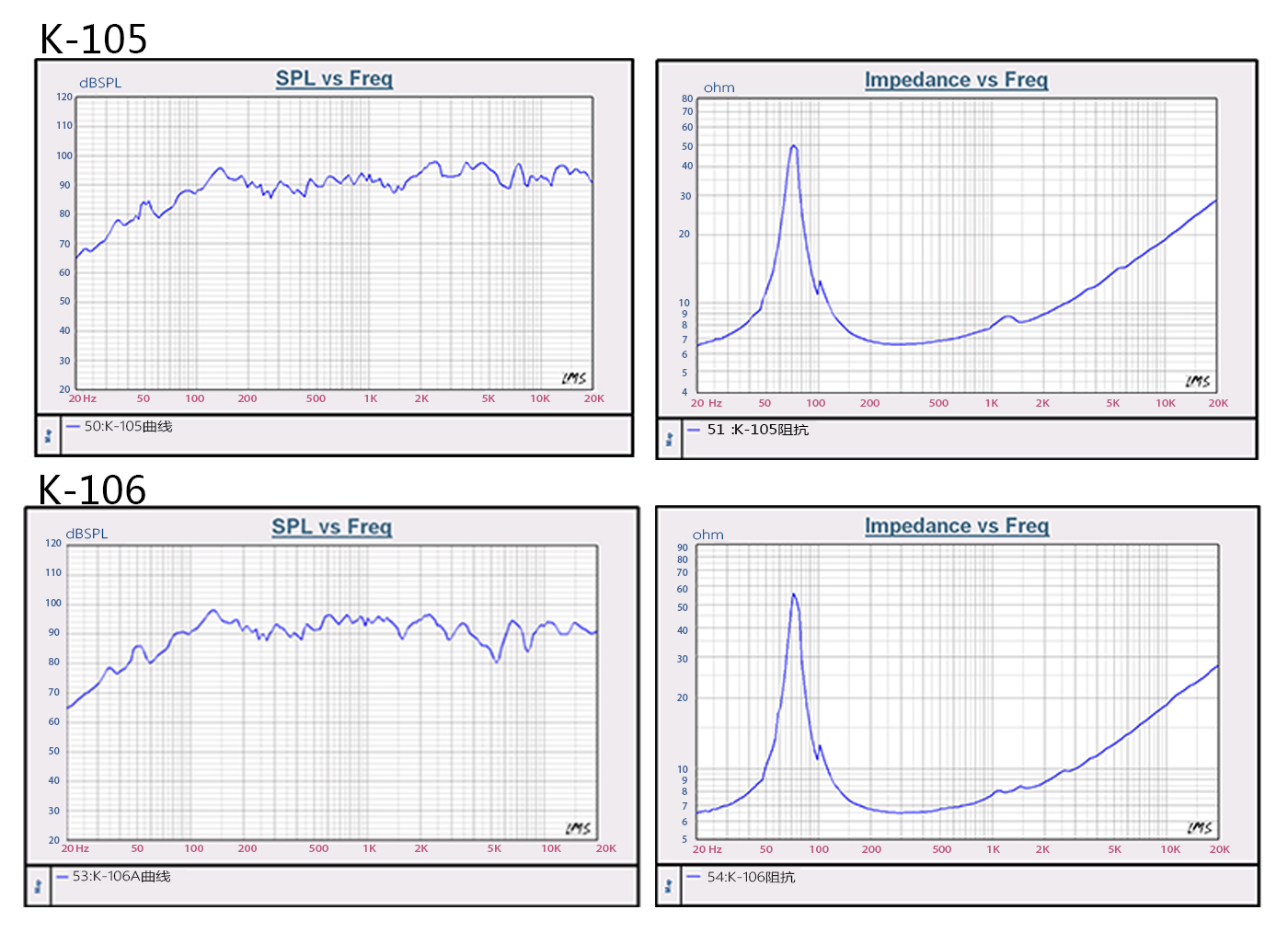

FQ RESPONSE

50hz-20Khz

50hz-20Khz

LOUDSPEAKER

5“(Φ135mm)25/25mm cone

6.5“(Φ166mm)25/25mm cone

OUTSIDE SIZE

225×110mm

243×110mm

HOLE SIZE

Φ195mm

Φ215mm

INNER BOX SIZE

260×260×150mm

278×278×130mm

MATERIAL

ABS

ABS

COLOR

WHITE

WHITE

N.W.

1.13kg

1.66kg

04

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:


    1. On the ceiling,holes are opened according to the mounting size,connect the impedance input wire.


    2.Remove the grille and carefully place the speakers  in the mounting holes.


    3.Use a screwdriver to lock the mounting bracket and install the grille.

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 8Ω output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

K-105

53.5*27.5*32

4

0.047

4.52

8.02

2212

5616

K-106

57.5*29.5*28

4

0.047

6.64

10.14

2212

5616

Accessories:

Required

——

Matching

——

07

THE SCENARIO


SCHOOL


MEETING ROOM


BUSINESS-CLUB


SHOPPING MALL


AIRPORT/METRO


LIVING ROOM
