Wholesale M-40PA 60W 3-inch 8Ohm conference linear column audio

Home / Products / Column Speaker / M-40PA 60W 3-inch 8Ohm conference linear column audio

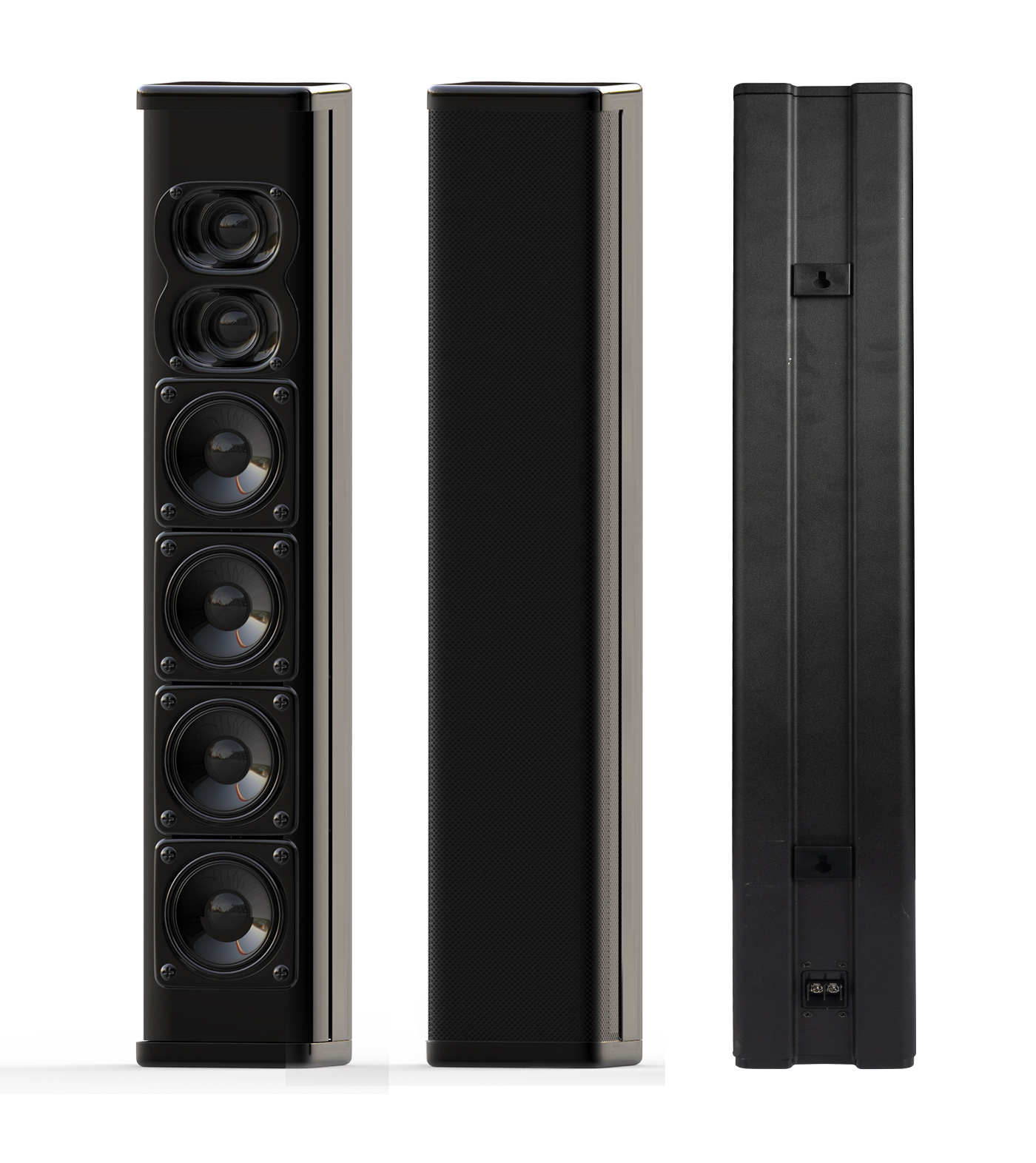

M-40PA 60W 3-inch 8Ohm conference linear column audio

01

Product category

M-40PA 60W 3-inch 8Ohm conference linear column audio

Features:

  • Conference system linear column speaker
  • 60W RMS power
  • 4pcs 3“woofer,2pcs 25mm silk film tweeter
  • Made by aluminum alloy
  • Total black or white

02

DATASHEET

M-40PA 60W 3-inch 8Ohm conference linear column audio

M-80PA 120W 3-inch 4Ohm conference linear column audio

M-120PA 180W 3-inch 4Ohm conference linear column audio

3-inch conference system linear column speaker

03

DATA INFORMATION

ITEM M-40PA M-80PA M-120PA
RMS POWER 60W 120W 180W
IMPEDANCE
SENSITIVITY 91±3dB 93±3dB 95±3dB
FQ RESPONSE 200hz-20Khz 200hz-20Khz 200hz-20Khz
LOUDSPEAKER

woofer:3“×4

tweeter:25mm ×2

woofer:3“×8

tweeter:25mm ×4

woofer:3“×12

tweeter:25mm ×4

OUTSIDE SIZE 93×75×445mm 93×75×880mm 93×75×1350mm
INNER BOX SIZE 200×130×480mm(2pcs) 200×130×915mm(2pcs) 200×130×1350mm(2pcs)
MATERIAL Aluminum Alloy
COLOR BLACK/WHITE
N.W. 3.5kg 6.5kg 9.5kg



04

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 8Ω output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM SIZE(cm) PCS/CTN CBM (m3) N.W. (kg) G.W. (kg)
M-40PA 28*22*50.5 4 0.031 14 18
M-80PA 22*15*94 2 0.031 13 17
M-120PA 22*15*137.5 2 0.045 19 21

Accessories:

Required

——

Matching

——

07

THE SCENARIO


SCHOOL


MEETING ROOM


BUSINESS-CLUB


SHOPPING MALL


AIRPORT/METRO


LIVING ROOM

08

COMPANY INFORMATION

PANORAMA

PANORAMA

Injection

Injection

TRANSFORMER

TRANSFORMER

LOUDSPEAKER

LOUDSPEAKER

Electronic PCB

Electronic PCB

Assembly

Assembly

inspection room

inspection room

Silence room

Silence room

sample room

sample room

09

Certificate

  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate

Ningbo Cooma Acoustics Co., Ltd.

Ningbo Cooma Acoustics Co., Ltd. is a M-40PA 60W 3-inch 8Ohm conference linear column audio Suppliers and M-40PA 60W 3-inch 8Ohm conference linear column audio Company, mainly producing ceiling speakers, wall speakers, column speakers, Bluetooth speakers, power amplifiers, mixer amplifiers and other public broadcast peripherals and intelligent speakers.

The company was founded in 2009, plant area of 15,000 square meters, the existing more than 200 employees, the company in the entire daily operation process to fully implement the ISO9001 quality management system, to systematize, standardize, standardized operation, to ensure long-term stability to provide high-quality products. Our products have CE, ROHS2.0, IP65 and other international safety certifications, which can meet the mandatory requirements of customers around the world for various safety certifications.

The company gives priority to the introduction of fully automated speaker unit production lines, reducing the accumulation of products in progress, streamlined production to ensure that each unit has a high yield and consistency, which is not only a strong guarantee for product production delivery, but also a strong guarantee for product quality.

Today's Cooma has become a professional audio production enterprise integrating R&D, production, sales and service, always taking high-quality guarantee and professional service as the brand commitment, taking the long-term value of customers as the brand core, adhering to the development concept of product quality, production scale, operation specialization, business regionalization, and management differentiation, tree quality banner, and do high-quality enterprises.
