Wholesale M-40PE 60W 2-inch 8Ohm conference linear column audio

Home / Products / Column Speaker / M-40PE 60W 2-inch 8Ohm conference linear column audio

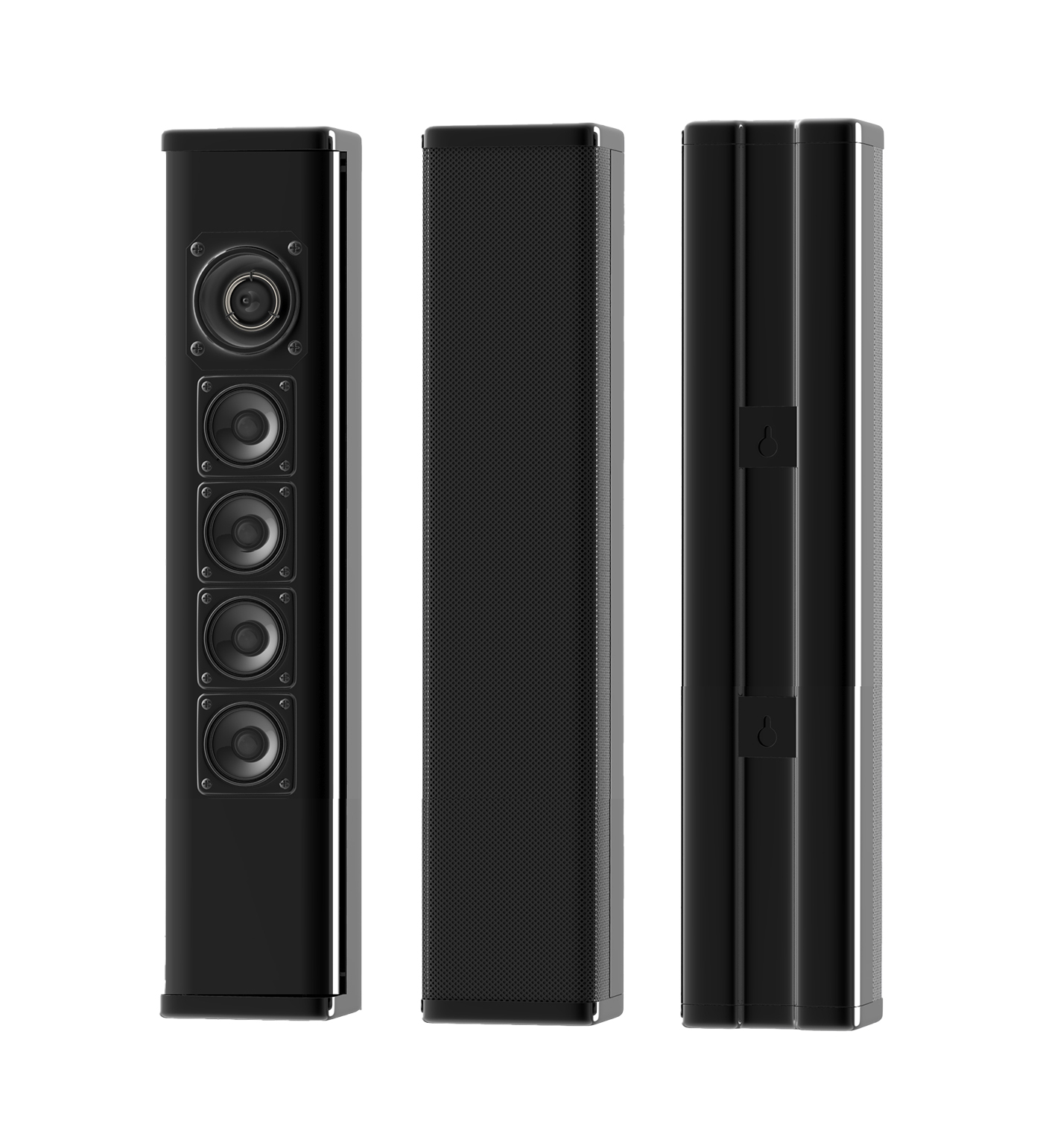

M-40PE 60W 2-inch 8Ohm conference linear column audio

01

Product category

M-40PE 60W 2-inch 8Ohm conference linear column audio

Features:

  • Conference system linear column speaker
  • 60W RMS power
  • 4pcs 2“woofer,1pcs 26mm silk film tweeter
  • Made by aluminum alloy
  • Total black or white

02

DATASHEET

M-40PE 60W 2-inch 8Ohm conference linear column audio

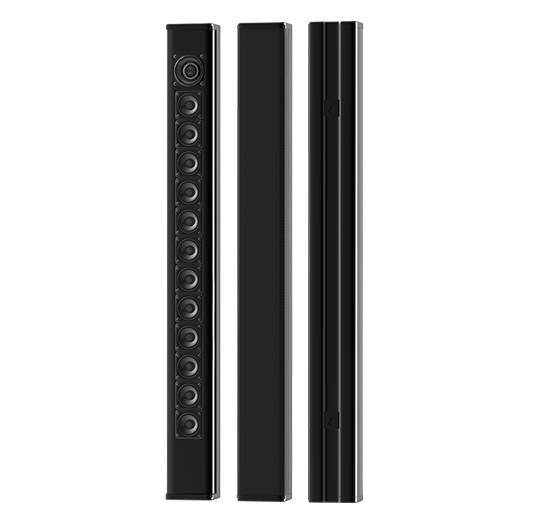

M-120PE 120W 2-inch 8Ohm conference linear column audio

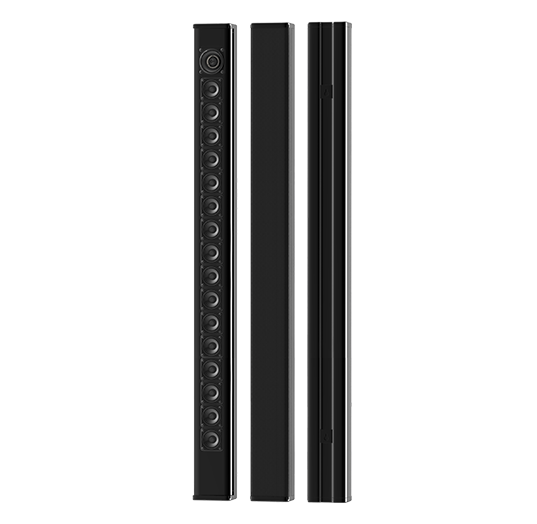

M-160PE 160W 2-inch 8Ohm conference linear column audio

2-inch conference system linear column speaker

03

DATA INFORMATION

ITEM M-40PE M-120PE M-160PE
RMS POWER 60W 120W 160W
IMPEDANCE
SENSITIVITY 90±3dB
FQ RESPONSE 65hz-20Khz
LOUDSPEAKER

woofer:2“×4

tweeter:26mm ×1

woofer:2“×12

tweeter:26mm ×1

woofer:2“×16

tweeter:26mm ×1

OUTSIDE SIZE 93×75×445mm 93×75×880mm 93×75×1350mm
INNER BOX SIZE 200×130×480mm(2pcs) 200×130×915mm(2pcs) 200×130×1350mm(2pcs)
MATERIAL Aluminum Alloy
COLOR BLACK/WHITE
N.W. 3.5kg 6.5kg 9.5kg



04

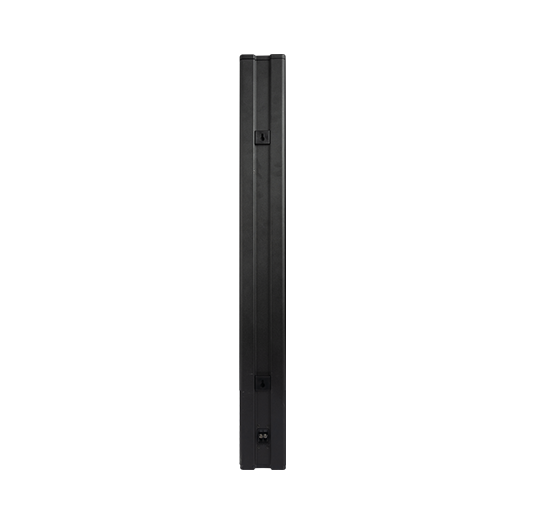

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 8Ω output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM SIZE(cm) PCS/CTN CBM (m3) N.W. (kg) G.W. (kg)
M-40PE 28*22*50.5 4 0.031 14 18
M-120PE 22*15*94 2 0.031 13 17
M-160PE 22*15*137.5 2 0.045 19 21

Accessories:

Required

——

Matching

——

07

THE SCENARIO


SCHOOL


MEETING ROOM


BUSINESS-CLUB


SHOPPING MALL


AIRPORT/METRO


LIVING ROOM
