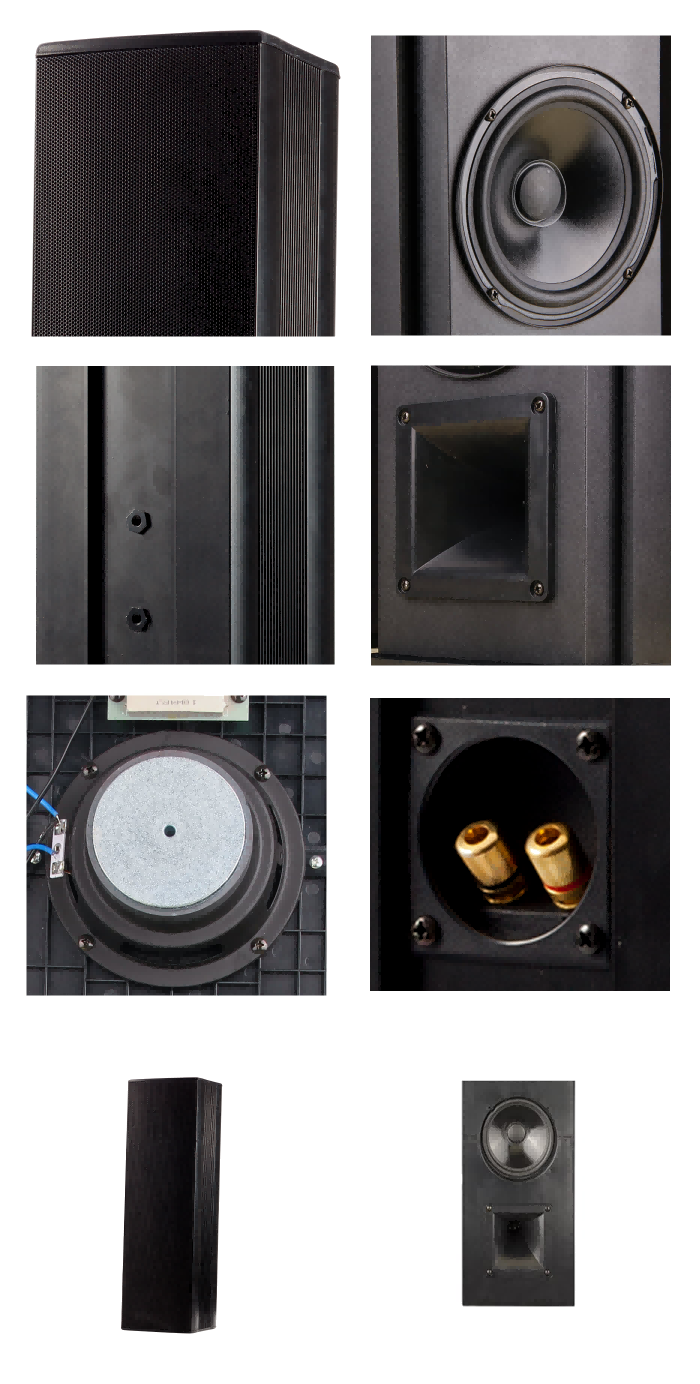

Features:
- 5.25-inch 8ohm column speaker
- 50W power
- With 1pc woofer loudspeaker and 1pc tweeter
- Aluminum alloy Shell
- Hot selling column speaker
Product category
| ITEM | M-20DC | M-40DC |
| POWER | 50W | 100W |
| IMPEDANCE INPUT | 8Ω | 4Ω |
| SENSITIVITY | 92dB±3dB | 92dB±3dB |
| FQ RESPONSE | 100hz-20Khz | 100hz-20Khz |
| LOUDSPEAKER | 5.25“（Φ131mm×1）/25mm | 5.25“（Φ131mm×2）/25mm |
| OUTSIDE SIZE | 415×140×127mm | 790×140×127mm |
| INNER BOX SIZE | 335×210×515mm | 335×210×885mm |
| TRANSFORMER SIZE | 19×25 | 19×25 |
| MATERIAL | Aluminum Alloy | Aluminum Alloy |
| COLOR | BLACK | BLACK |
| N.W. | 3.87kg | 7.01kg |

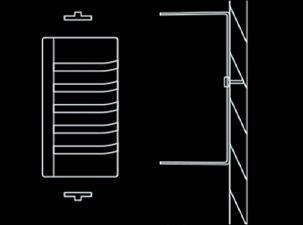

1.Rotate the plastic knobs of the upper and lower brackets, remove the U-shaped bracket, and fix the U-shaped bracket on the wall with screws.

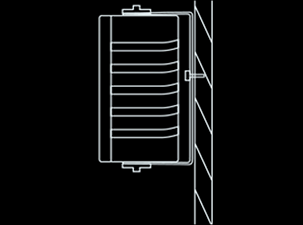

2.Use the plastic knob to fix the speaker on the U-shaped bracket. Adjust the angle before it can be used normally.
The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 8Ω/100V output is connected to the required corresponding wire.
inner box
carton
| ITEM | SIZE(cm) | PCS/CTN | CBM (m3) | N.W. (kg) | G.W. (kg) | 20GP(pcs) | 40HQ(pcs) |
| M-20DC | 44*37.5*53.5 | 0.088 | 8 | 30.96 | 33.00 | 2360 | 6000 |
| M-40DC | 37.5*23*91 | 0.078 | 4 | 28.04 | 30.00 | 1332 | 3384 |
|
