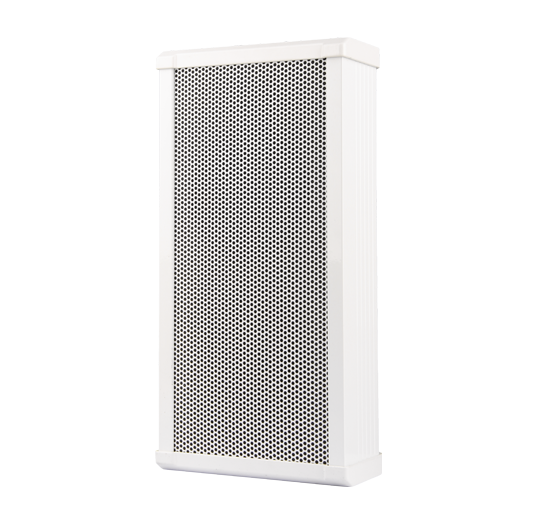

M-20AC 30W 100V outdoor amplified waterproof speakers PA system column speaker

01

Product category

M-20AC 30W 100V outdoor amplified waterproof speakers PA system column speaker

Features:

  • 5 inch 100V column speaker
  • 30W RMS power
  • TWO way loudspeaker, 25mm cone woofer,25mm silk film tweeter
  • Made by aluminum alloy ,water proof outdoor very good for the sport room,school ground

03

DATA INFORMATION

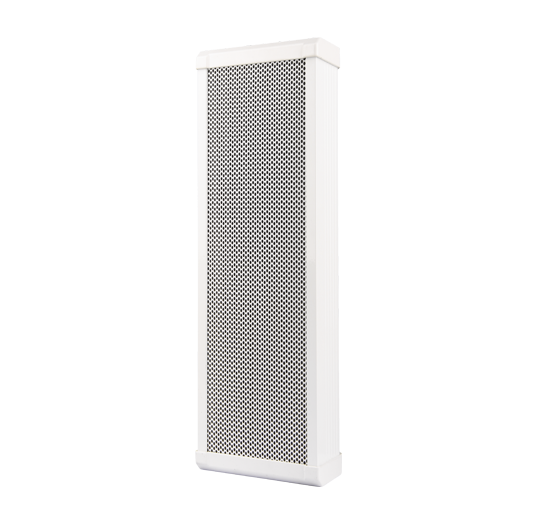

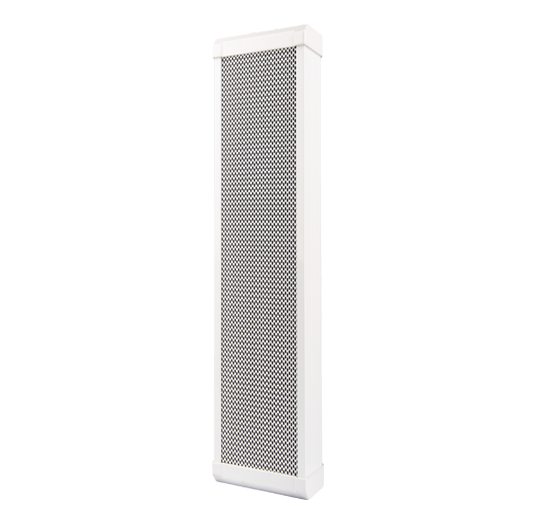

ITEM M-20AC M-30AC M-50AC
RMS POWER 30W 60W 90W
VOLTAGE INPUT 100V 100V 100V

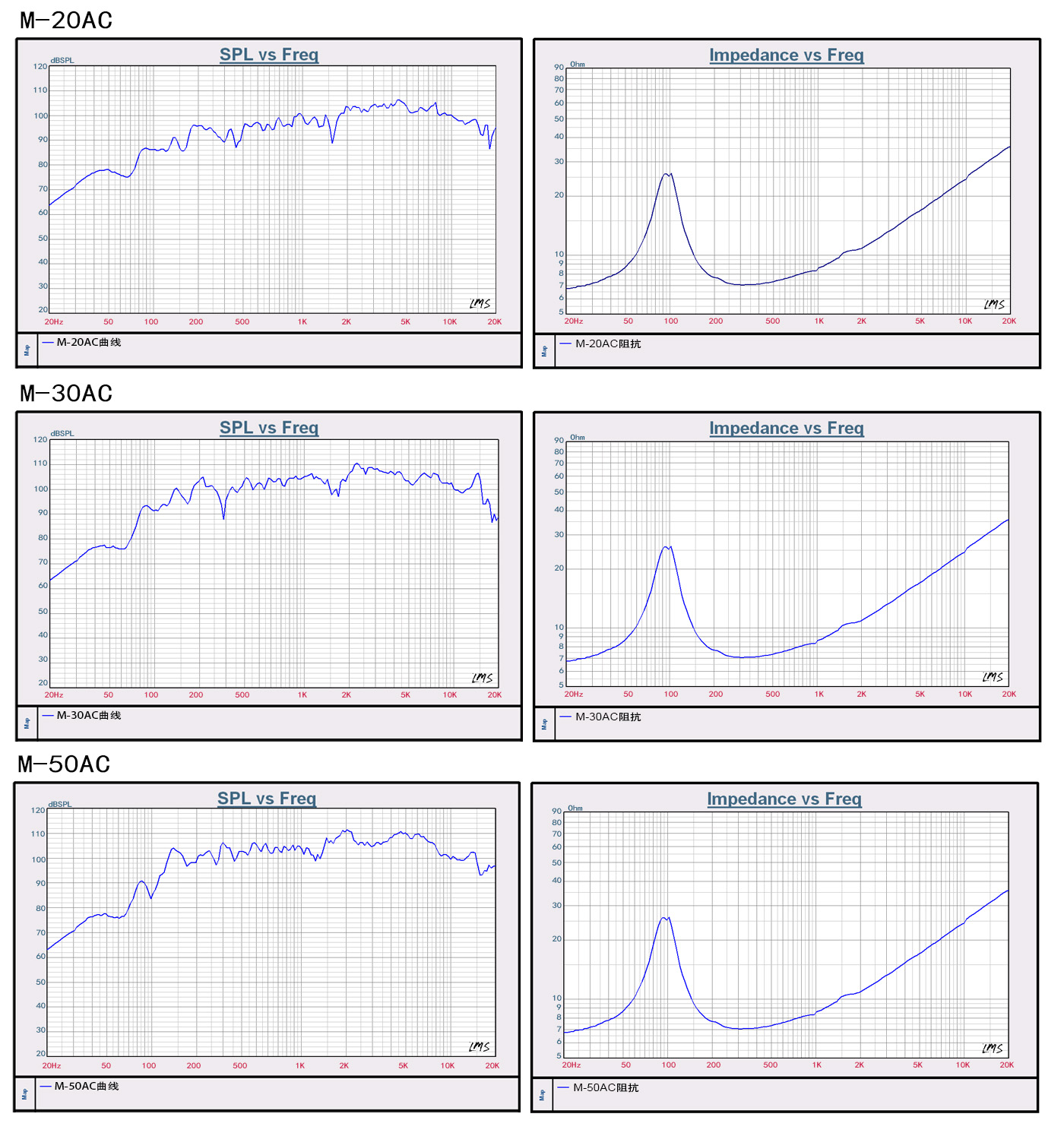

SENSITIVITY 91±3dB 91±3dB 91±3dB
FQ RESPONSE 80hz-18Khz 80hz-18Khz 80hz-18Khz
LOUDSPEAKER 5“(Φ131×1)  25mm cone/25mm×1  5“(Φ131×2)  25mm cone/25mm×1  5“(Φ131×4)  25mm cone/25mm×1
OUTSIDE SIZE 364×185×126mm 514×185×126mm 812×185×126mm
INNER BOX SIZE 195×130×400mm 195×130×550mm 195×130×1000mm
TRANSFORMER SIZE 15×25 22×28 22×28
MATERIAL Aluminum Alloy Aluminum Alloy Aluminum Alloy
COLOR WHITE WHITE WHITE
N.W. 3.36kg 5.46kg 8.26kg

04

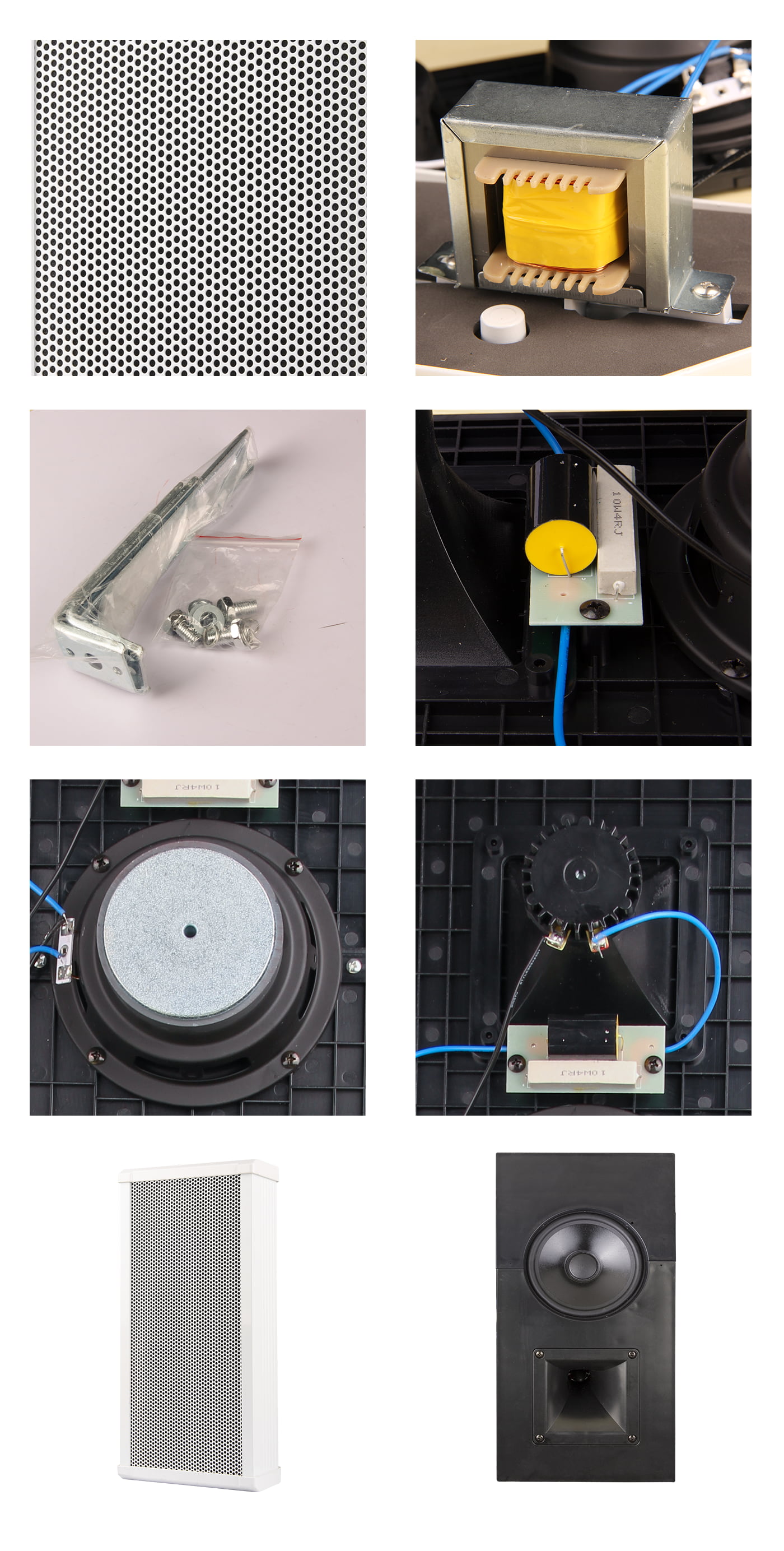

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:

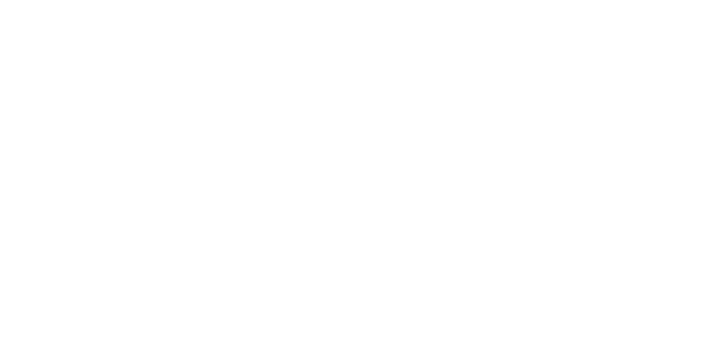

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM SIZE(cm) PCS/CTN CBM (m3) N.W. (kg) G.W. (kg) 20GP(pcs) 40HQ(pcs)
M-20AC 61*42*29.5 0.076  6 20.16  22.16 2052 5208
M-30AC 57*42*28 0.067  4 21.84  23.84 1552 3940
M-50AC 29*21.5*102.5 0.064  2 16.52  18.52 812 2062

Accessories:

Required

——

Matching

——

07

THE SCENARIO


SCHOOL


MEETING ROOM


BUSINESS-CLUB

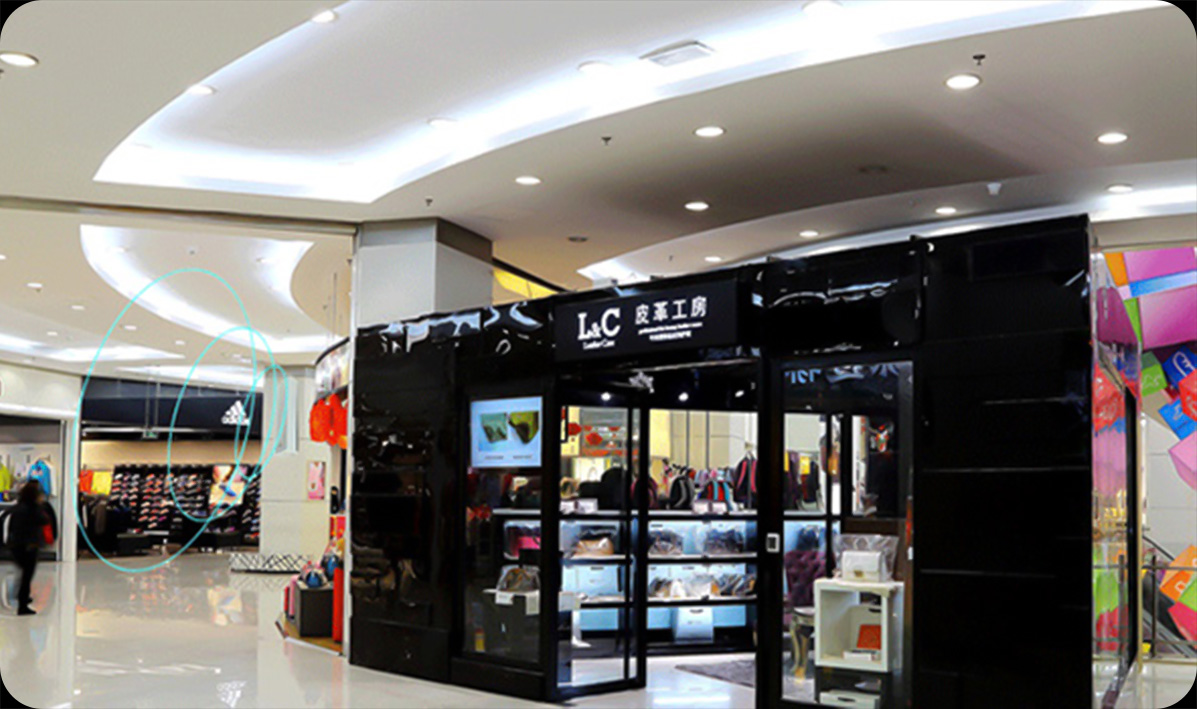

SHOPPING MALL
