Wholesale M-596 4inch white 100V two way best sound ceiling speaker

Home / Products / Ceiling Speaker / M-596 4inch white 100V two way best sound ceiling speaker

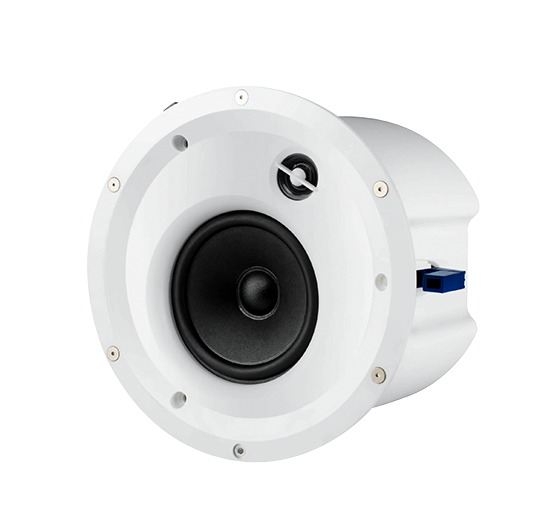

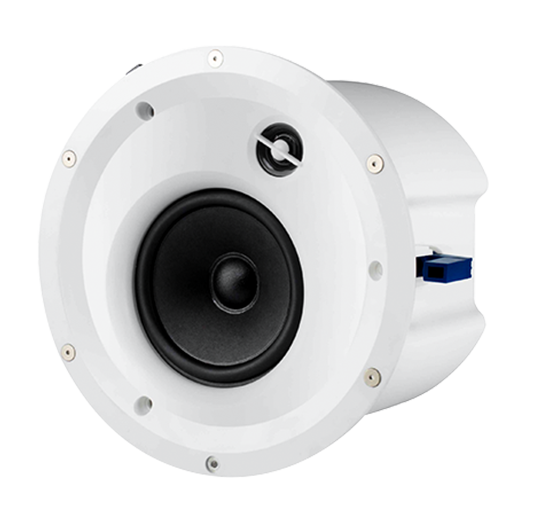

M-596 4inch white 100V two way best sound ceiling speaker

01

Product category

M-596 4inch white 100V two way best sound ceiling speaker

Features:

  • 4 inch two-way ceiling speaker
  • With 20mm cone woofer and 13mm silk film tweeter
  • 2.5W/5W/10W with transformer, magnet grill
  • Metal spring strong for the ceiling

03

DATA INFORMATION

ITEM

M-596

M-596B

RMS POWER

2.5W/5W/10W

10W

MAX POWER

20W

20W

VOLTAGE INPUT

100 V

/

IMPEDANCE INPUT

/

SENSITIVTY

91±3dB

91±3dB

FQ RESPONSE

80-20Khz

80-20Khz

LOUDSPEAKER

4“(Φ103mm)20/13mm cone

4“(Φ103mm)20/13mm cone

OUTSIDE SIZE

208×143mm

208×143mm

HOLE SIZE

Φ175mm

Φ175mm

INNER BOX SIZE

225×225×160mm

225×225×160mm

TRANSFORMER SIZE

13×20

/

MATERIAL

ABS

ABS

COLOR

WHITE

WHITE

N.W.

1.1kg

1.1kg

04

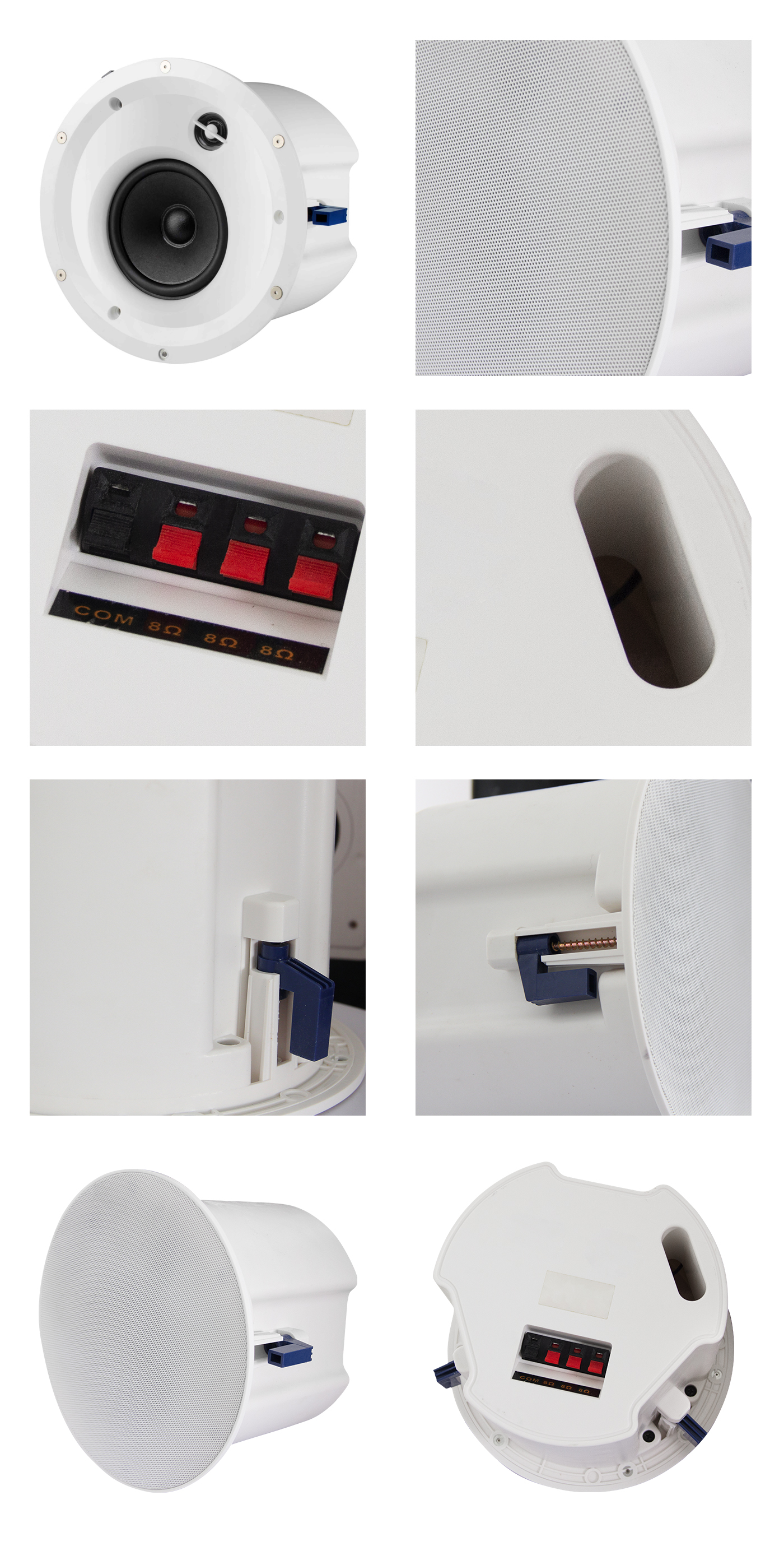

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:


    1. On the ceiling,holes are opened according to the mounting size.


    2.Remove the grille and carefully place the speakers  in the mounting holes.


    3. Use a screwdriver to lock the mounting bracket and install the grille.

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V(M-596)/8Ω(M-596B) output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

M-596

69*46.5*33.5

12

0.107

13.20

16.70

2916

7404

M-596B

69*46.5*33.5 12 0.107 13.2 16.7 2916 7404

Accessories:
