M-558A 5inch with back cover 10W coaxial two way ceiling speaker

01

Product category

M-558A 5inch with back cover 10W coaxial two way ceiling speaker

Features:

  • 5 inch two-way ceiling speaker
  • With 20mm cone woofer and 13mm silk film tweeter
  • 5W/10W with transformer
  • Metal spring strong for the ceiling

03

DATA INFORMATION

ITEM

M-558A

M-568A

M-578A

RMS POWER

5W/10W

30W

50W

MAX POWER

20W

50W

80W

VOLTAGE INPUT

100 V

100V

100V

SENSITIVTY

91dB±3dB

91dB±3dB

91dB±3dB

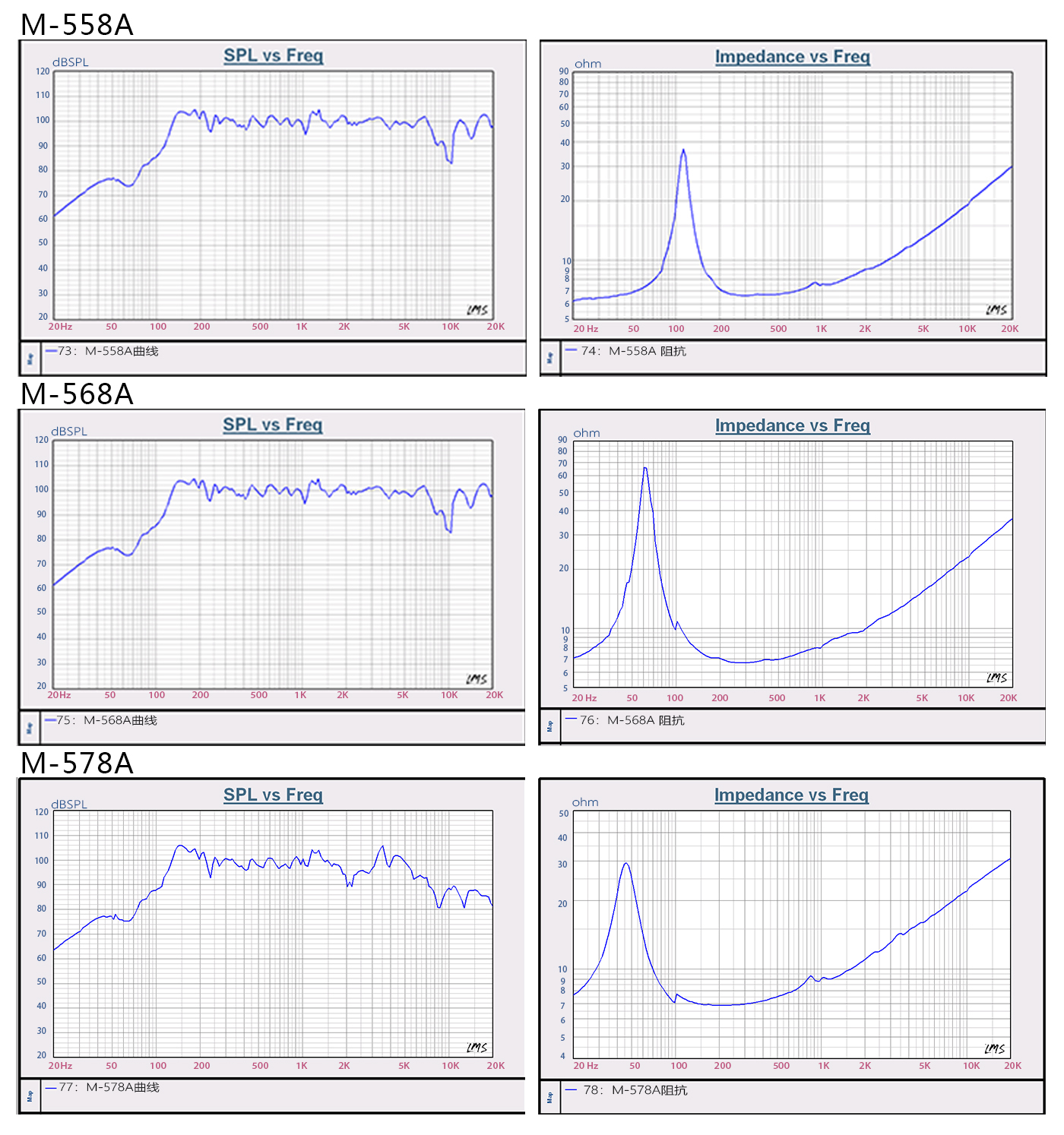

FQ RESPONSE

90-16Khz

90-18Khz

90-18Khz

LOUDSPEAKER

5“(Φ130mm)20/13mm cone

6.5“(Φ166mm)25/13mm cone

8“(Φ208mm)25/13mm cone

OUTSIDE SIZE

203×100mm

240×145mm

280×145mm

HOLE SIZE

Φ168mm

Φ205mm

Φ250mm

INNER BOX SIZE

215×215×130mm

255×255×165mm

300×300×165mm

TRANSFORMER SIZE

13×20

16×20

16×20

MATERIAL

ABS

ABS

ABS

COLOR

WHITE

WHITE

WHITE

N.W.

1.14kg

1.9kg

2.3kg

04

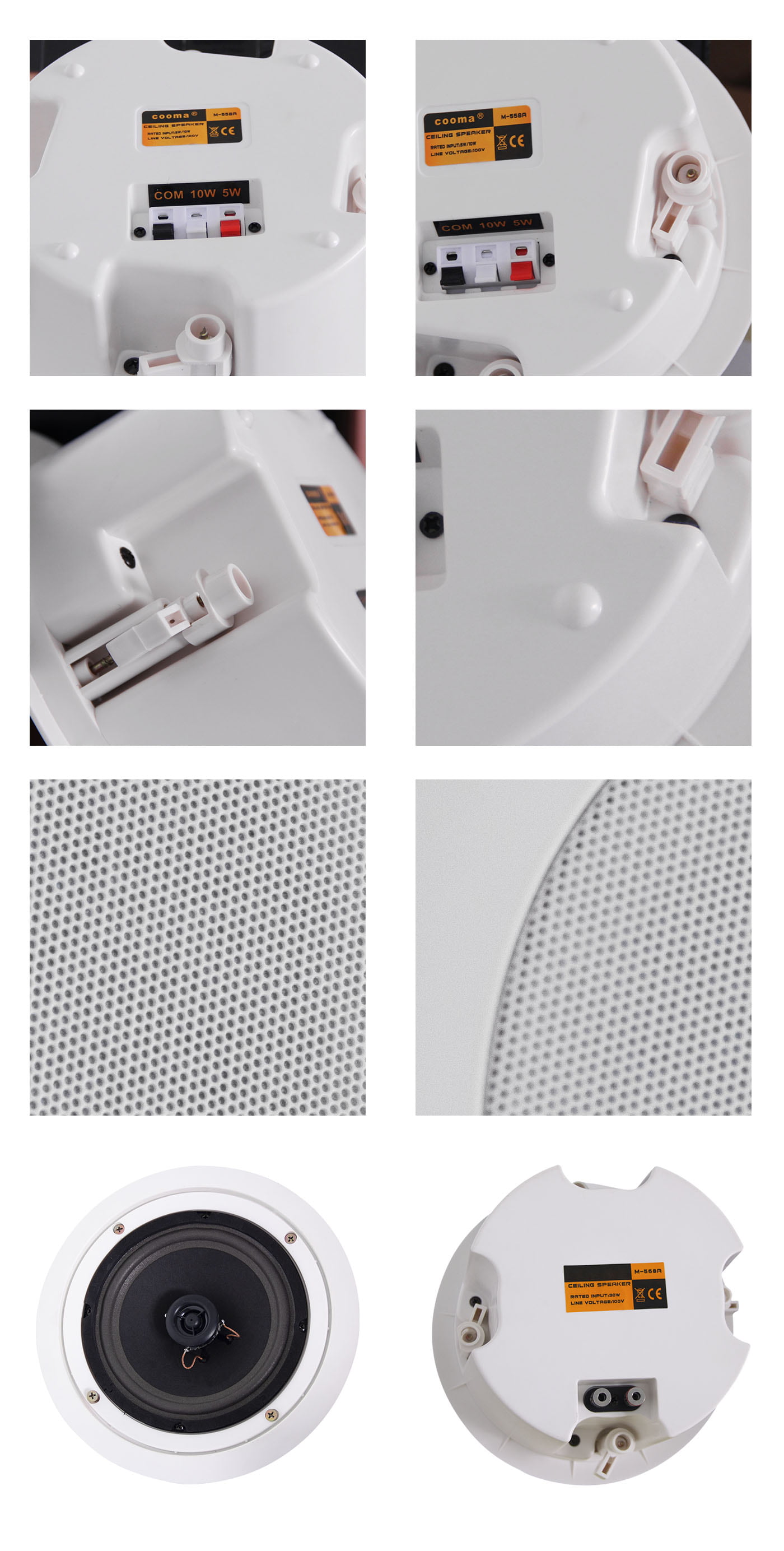

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:


    1. On the ceiling,
    Holes are opened according
    to the mounting size.


    2. Aim the horn at the opening hole, and open the spring clip.


    3. Push up hard to make the little flower horn Flatten close to the ceiling surface.

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

M-558A

68*44.5*23.5

10

0.071

11.40

14.90

3660

9300

M-568A

53.5*27*52

6

0.075

11.40

14.90

2082

5280

M-578A

62.5*31.5*35.5

4

0.070

9.20

12.70

1484

3772

Accessories:

Required

——

Matching

——

07

THE SCENARIO


SCHOOL


MEETING ROOM


BUSINESS-CLUB


SHOPPING MALL


AIRPORT/METRO


LIVING ROOM
