Wholesale M-545C 4.5inch100V full range metal ceiling speaker

Home / Products / Ceiling Speaker / M-545C 4.5inch100V full range metal ceiling speaker
M-545C 4.5inch100V full range metal ceiling speaker

01

Product category

M-545C 4.5inch100V full range metal ceiling speaker

Features:

  • 4.5 inch full range metal ceiling speaker
  • 1.5W/3W/6W with transformer
  • Metal spring strong for the ceiling

03

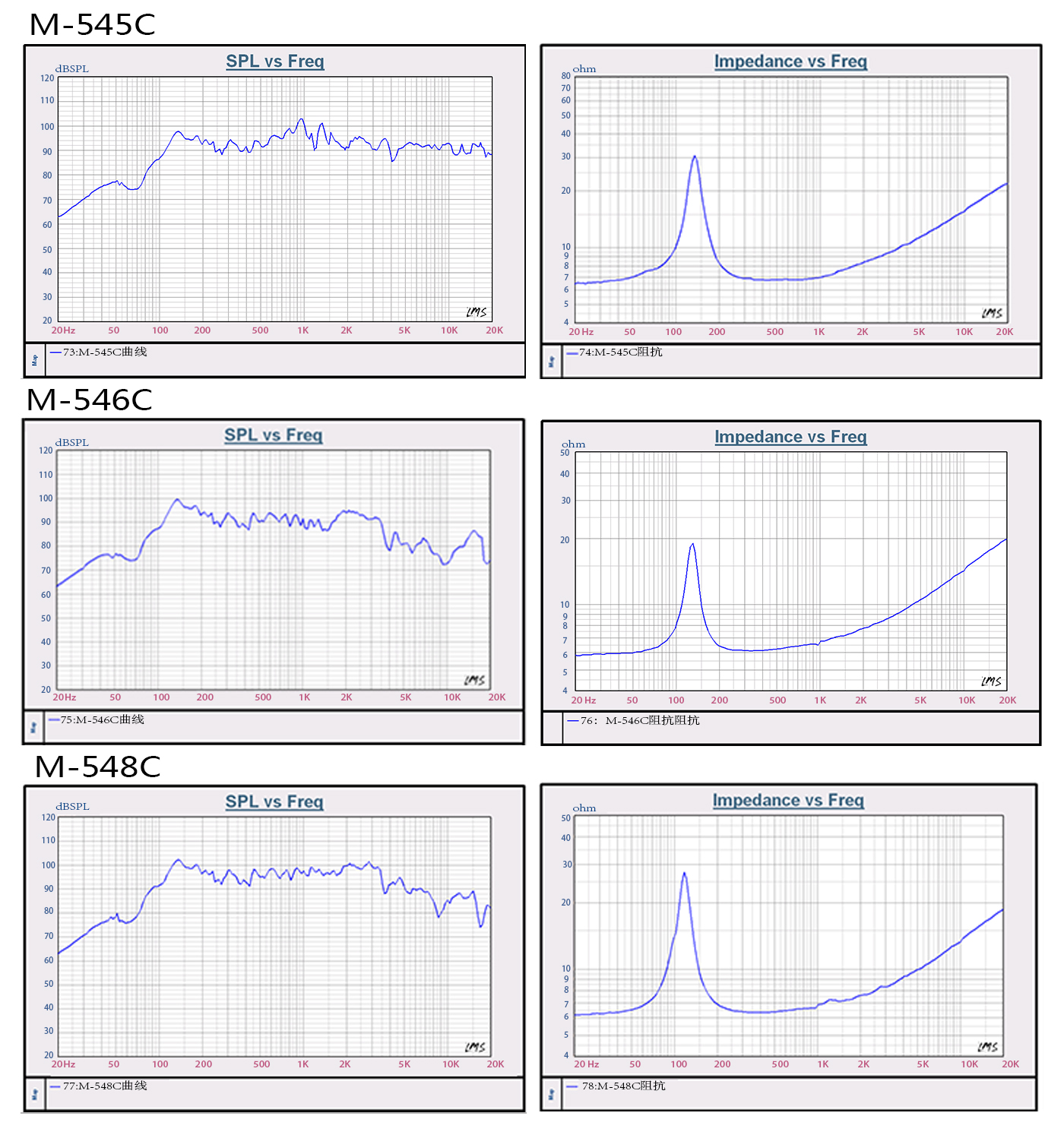

DATA INFORMATION

ITEM

M-545C

M-546C

M-548C

RMS POWER

1.5W/3W/6W

1.5W/3W/6W

2.5W/5W/10W

MAX POWER

10W

10W

20W

VOLTAGE INPUT

100 V

100V

100V

SENSITIVTY

90dB±3dB

90dB±3dB

92dB±3dB

FQ RESPONSE

90-16KHz

90-16KHz

90-16Khz

LOUDSPEAKER

4.5“(Φ120mm)20mm cone

5.5“(Φ141mm)20mm cone

6.5“(Φ165mm)20mm cone

OUTSIDE SIZE

181×50mm

198×55mm

215×65mm

HOLE SIZE

Φ152mm

Φ166mm

Φ185mm

INNER BOX SIZE

185×60×187mm

205×65×205mm

222×83×222mm

TRANSFORMER SIZE

13×16

13×16

13×20

MATERIAL

METAL

METAL

METAL

COLOR

WHITE

WHITE

WHITE

N.W.

0.77kg

0.81kg

1.05kg

04

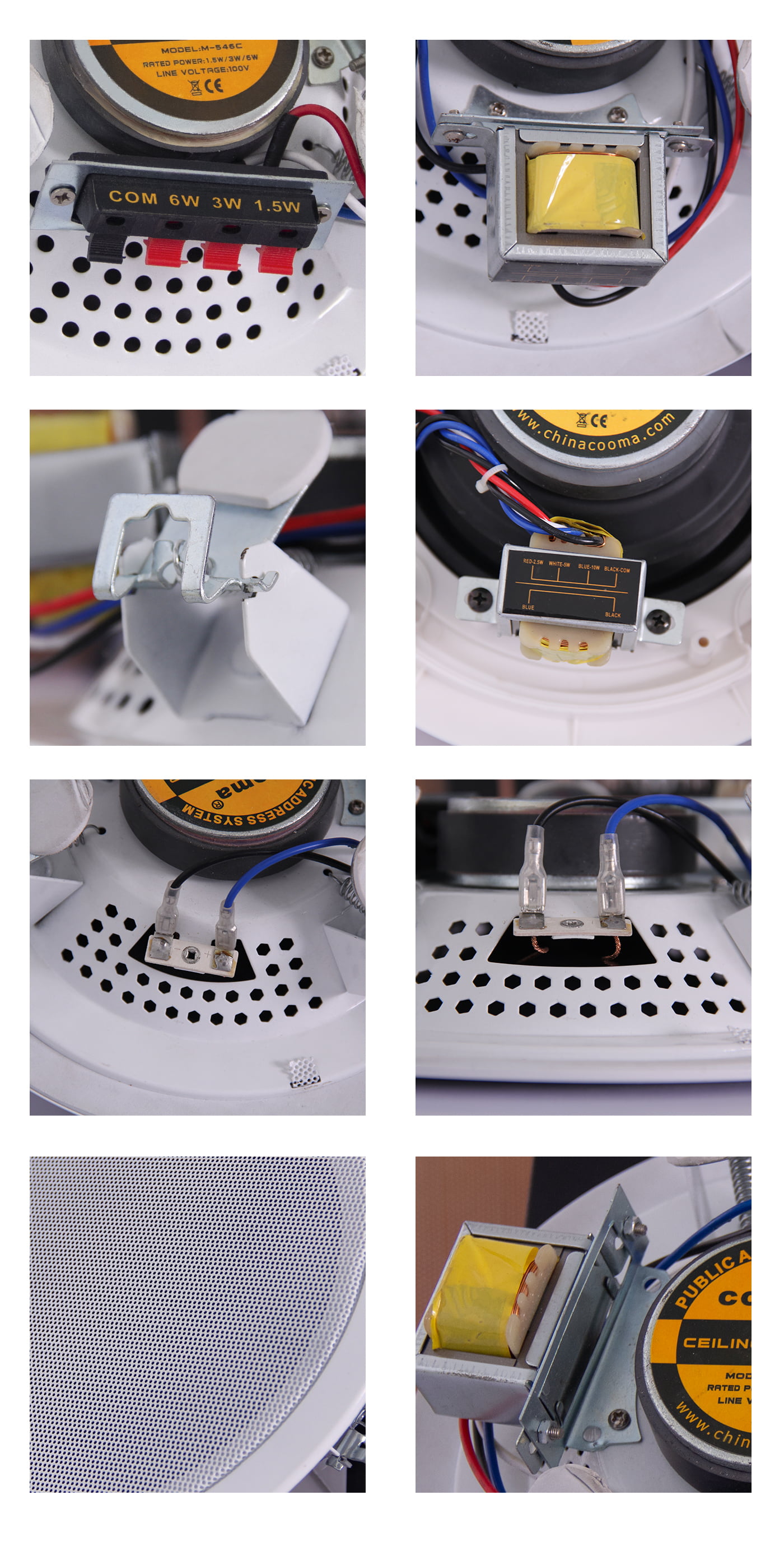

PRODUCT DETAILS

05

installation drawings

How to install

  • Installation schematic:


    1. On the ceiling,
    Holes are opened according
    to the mounting size.


    2. Aim the horn at the opening hole, and open the spring clip.


    3. Push up hard to make the little flower horn Flatten close to the ceiling surface.

  • Dimensions

  • Circuit schematic:

  • Wiring instructions:

    The amplifier output COM needs to be connected to the black wire when wiring, and the amplifier 100V output is connected to the required corresponding wire.

06

Packing


inner box


carton

Packing list

ITEM

SIZE(cm)

PCS/CTN

CBM (m3)

N.W. (kg)

G.W. (kg)

20GP(pcs)

40HQ(pcs)

M-545C

39*32*39

20

0.049

15.4

18.90

10620

26940

M-546C

42.5*35*42.5

20

0.063

16.20

19.70

8260

20960

M-548C

46*44*23.8(48.5*16.5*23.5)

10

0.048

10.5

14.00

5420

13750

Accessories:
